Features

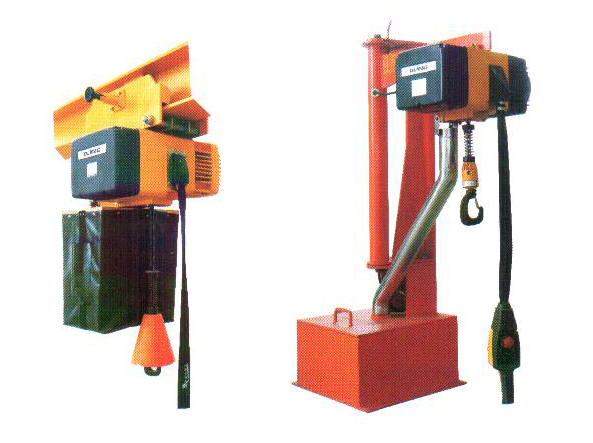

This product is a lightweight lifting equipment with a lifting capacity ranging from 250kg to 1OOOK. Mainly used for lifting internal and external materials of wind turbine rudder, with a lifting height of up to 120m. According to the size of the rudder, complete sets of supporting devices such as rotary arm hangers, single beam cranes, and circular tracks can be provided.

This product adopts a mechanical overload release device, which has a lifting capacity overload limit protection function.

This product adopts invisible installation of lifting and lowering electrical limit devices, motor phase loss protection control, and power loss protection control.

This product is small in size and light in weight. The electrical and main machine are designed in an integrated way. The main machine adopts a flat Rectangular cuboid shape structure, with smooth round corners and compact structure. The whole machine runs with low noise. The hook spacing design is smaller than that of other wire rope electric hoists and ring chain electric hoists of the same specification.

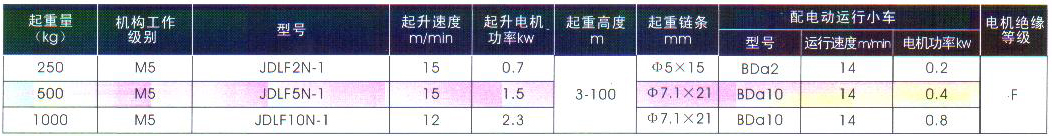

Specification Configuration

Success Cases
